Walkaround #523

Dassault-Breguet Super Étendard

Reference photos by Emmanuel Banon on Oct 20 2003

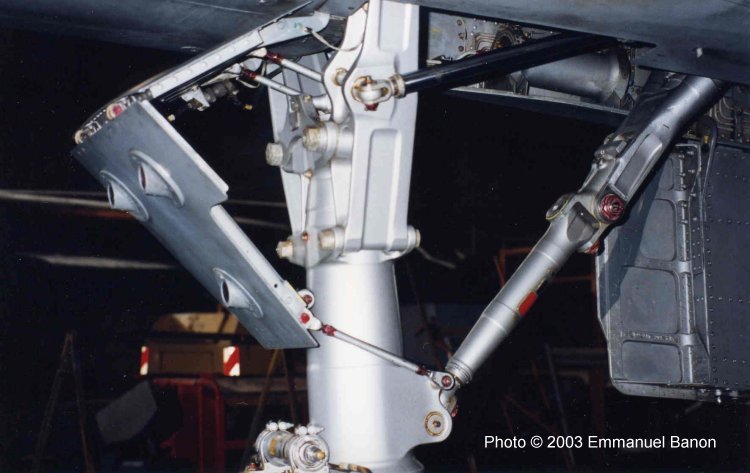

nose landing gear





These photos were taken of a French navy fighter/attack Dassault Super Etendard.  I took these pictures almost ten years ago at  BAN Landivisiau (BAN means NAS in French) in north west of Britain.  This airplane is a "simple" Super Etendard. Nowadays, all aircraft are SEM (= Super Etendard Modernisé, modernized) and the cockpit layout is different with Anemone radar.  So, here we have a Super Etendard with Agave radar.  The ejection seat is a Martin Baker CM 6.

Emmanuel Banon

Click on images below to see larger images

nose landing gear

nose landing gear

nose landing gear bay
the control stick and front instrument panel



Click on images below to see larger images

left side of front panel

right side of the panel with the Agave radar screen

the control stick and front instrument panel
left side console with throttle (the pink cylinder). The black switch at the top of the throttle is for the airbrakes



Click on images below to see larger images

the right side console and the black lower cushion of the seat.

headrest of the CM6 ejection seat and the red savety pin flags

headrest of the CM6 ejection seat and the red safety pin flags
lower cushion of the seat



Click on images below to see larger images

the side of the left air intake there are small control access panels
