1/48 Academy Mig-29

by Fernan De Gannes

--------------------

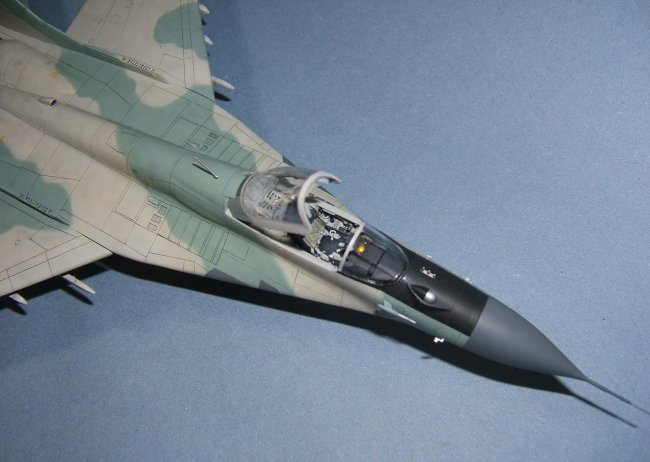

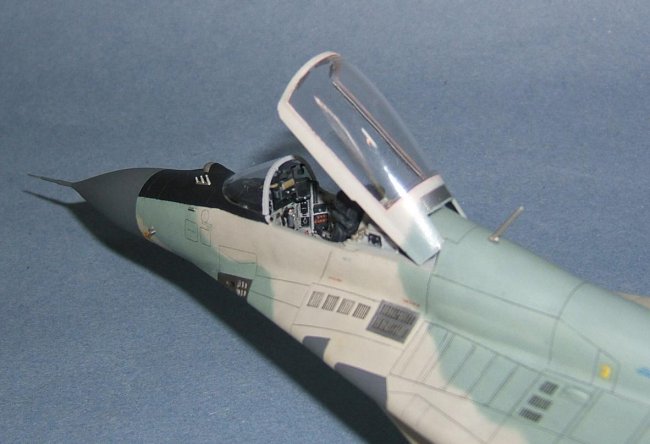

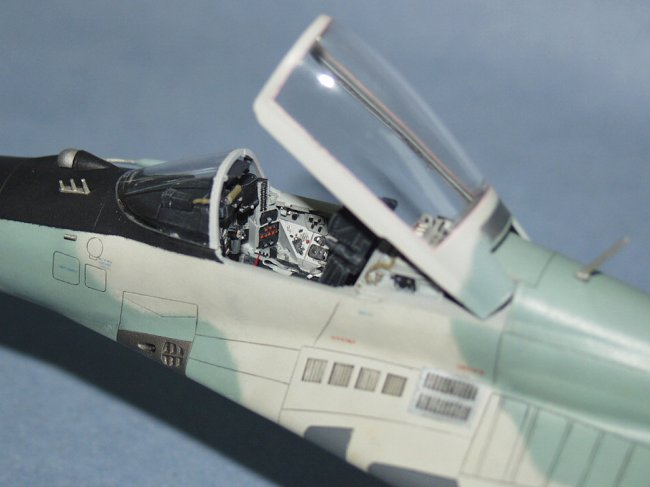

Academy's Mig 29 is a good start for making a decent model of this aircraft.  The weakest parts of the kit are the cockpit and the front landing gear.  I substituted the Aires cockpit which is a gem, and added some scratch built details to correct the gear.

Click on images below to see larger images





Other improvements included:-

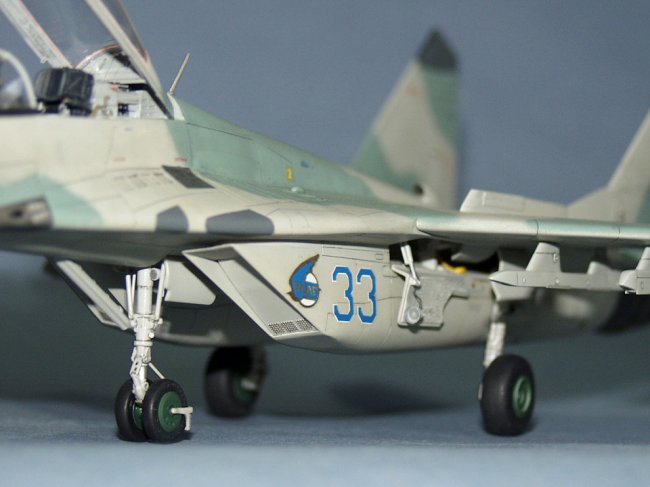

    • Added plumbing to the main wheel wells and hydraulic lines to all the gear legs.
    • Thinned the exhausts for better scale appearance.
    • Added static dischargers to wings, stabilators and rudders.
    • Added lifting eyes to top of rear fuselage.
    • Reshaped the scoop on the spine.
    • Scratch built the pitch fork antenna on the starboard tail.
    • Corrected the antenna array under the nose area and corrected the shape of the nose.
    • Reduced the size of the various probes for better scale appearance

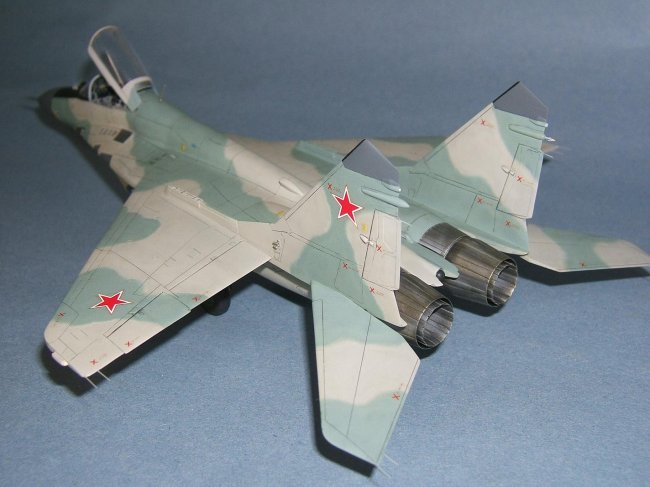

I painted the model using Model Master Fulcrum Grey and Fulcrum Green.  I added a few drops of Gunship Grey to the green to give it a more greyish hue.  The exhaust area was painted with Model Master Metalizeres - Burnt Metal streaked with Exhaust.  A final touch to this area was to mix some Tamiya Clear Yellow with some Future and apply this with a damp rag.  This gave it the discoloured look usually found on these aircraft.  The model was then coated with Future in preparation for decals.

Click on images below to see larger images





Decals are from Super Scale and depict an aircraft from the Soviet OKB Test Bureau.   A dark grey wash, light application of pastels, a shot of Testors Dull Coat and that was it.  I opted for a clean aircraft hence I did not arm it.  That's it for now, hope you like the model.

Fernan

Click on images below to see larger images







Photos and text © by Fernan De Gannes
