1/32 Hasegawa A-4E

Converted to Israeli A4-H

by Ed Okun

--------------------



This model was converted from a Hasegawa A-4E,  to an early Israeli airforce A-4H.  The conversion was done using the resin set available from "Cutting Edge Design".  The model was built to appear as one of the first planes received by the IAF in the late 1960s, which were designated "A-4H".  I have already built a later A-4E Skyhawk, in 32nd scale, with all the Israeli modifications, but I wanted another that would have been used during the "War of Attrition".  This was the initiation period of American warplanes to the IAF, and their "Baptism of fire" against the Egyptians in nearly daily raids along the Suez canal and Nile Delta.  It was also used at that time to bomb PLO training camps in Jordan and Syria.  One plane from this squadron (#03) managed to down 2 Syrian MiG-17s with unguided air to ground rockets!!

Click on images below to see larger images

 The model was painted in the usual camo pattern for Skyhawks of that period, but using the "Douglas Aircraft" shade of green FS #34258.  This shade was common to all Skyhawks in the IAF service used during that time.  After the mid 1970s, all A4 models in the IAF were repainted in the McDonnell green shade FS# 34227 as applied to the F4-E Phantom.

The paint is Testors "Model Master" #s FS 33531 (sand) FS 34258 (green) FS 30219 (dark tan) and FS 35622 (duck egg blue).  The decals I used were from "Sky's Decals" sheet #6 "Israeli Skyhawk collection" in 32nd scale. The model was coated numerous times before, during, and after decaling with "Future" acrylic floor polish.  The final coat  used was "Testors" Clear Flat Lacquer, misted over the model to achieve a satin finish.

Click on images below to see larger images

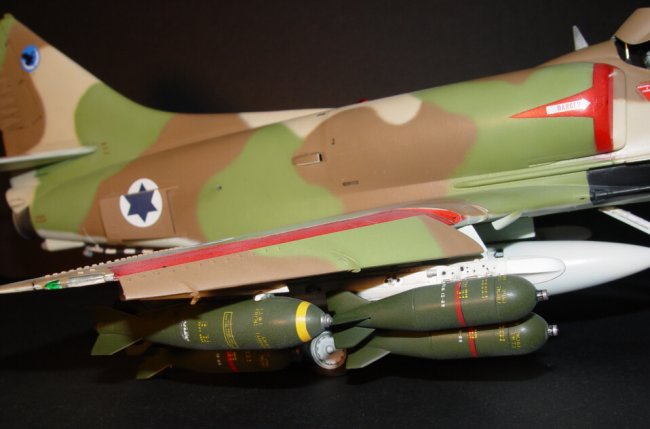

 The model represents an aircraft in the markings of the "Valley" squadron, Israel's first Skyhawk squadron.  It carries a 2 digit A/C call#,  later changed to 3 digits after Israel received more than 100 planes.  The originally supplied "Colt" 20mm cannons equip this plane, but these were later changed out for French DEFA 30mm on all IAF A4s.  The MER bomb racks on the inboard pylons, are also resin kits from "Cutting Edge Design".  They are nicely detailed, abit tedious to build, but look great after painting.  The French 500lb bombs on the MERs' are from a 32nd scale Mirage IIIE kit by "Revell".  All the small stenciling on the bombs are from model railroad decal sheets, as they have lots of nearly unreadable numbers.  All in all,  this was a total pleasure to build and I highly recommend this kit to anybody who loves "Scooters"

Edward

Click on images below to see larger images

Photos and text © by Edward Okun
